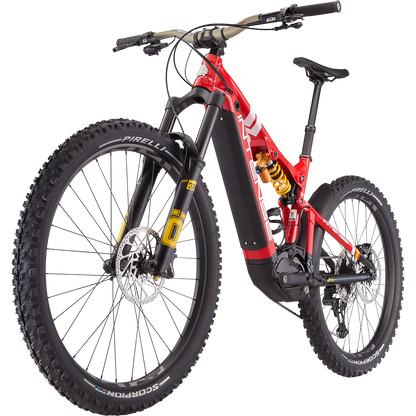

The all-new Tazer Alloy S draws inspiration from our iconic carbon Tazer eBike, renowned for its durability, rugged terrain prowess, and adaptability to all trail types. Through thoughtful geometry adjustments and a return to our roots, the Tazer S Alloy no boasts a refined silhouette with custom hydroformed 6061 T6 Alloy tubes. Featuring Öhlins suspension, Shimano's powerful EP800 motor, and a 630Wh battery, the Tazer Alloy S stands as the epitome of high-performance eBikes. Notable upgrades include the Universal Derailleur Hanger (UDH) and SRAM T-TYPE compatibility for an unparalleled riding experience.
With 155mm of rear travel and 170mm on the front, Shimano’s awesome STEPS EP800 motor system, a 630Wh integrated downtube battery, Öhlins suspension and a 279/mullet wheel set-up, you get great handling, amazing grip and trail ride excellence. The Tazer S Alloy is all about getting out there and enjoying the mountain bike experience, helping you climb faster, ride further and do more of the ‘good stuff’. This Limited Edition S build features a top of the range Öhlins RXF 38 m.2 air fork and TTX22m coil shock on the rear – which gives you off-the-top sensitivity, more traction and that unique feel that only a coil rear shock can give you. Add to that quality components from the likes of Renthal, ODI, TRP, e*thirteen, SDG and Pirelli, and you have one sweet build.
|
BUILD |
S |
|
WEIGHT |
58lbs 6oz (MD) - With Tubes, no pedals |
|
FRAME |
Tazer Performance Alloy Frame. Alloy top link, internal shift, dropper, post, brake, display unit routing, E*Spec Chainguide mount pattern, flak guard armor, integrated mud guard, 170mm front travel, 155mm rear travel, Universal Derailleur Hanger (UDH), SRAM T-Type compatibility. |
|
MOTOR |
Shimano EP800 STEPS Motor |
|
BATTERY |
BT-E8036, for STEPS, 630Wh Battery lock w/ 2 keys
|
|
DISPLAY UNIT |
Shimano SC-EM800 |
|
SWITCH |
Shimano SW-EM800-L |
|
FORK |
Ohlins RXF38 m.2 Air / 29" / 170mm / QR15 Axle / 44mm Offset |
|
SHOCK |
Ohlins TTX22m Coil shock, rebound adjustment, 3 position climb switch, Shock Size/Stroke: 185mm x 55mm |
|
COIL/SPRING |
480 lbs (SM Size for 64-73 kg rider weight) / 548 lbs (MD Size for 73-80 kg rider weight) / 640 lbs (LG,XL Size for 80-84 kg rider weight) |
|
WHEELSET |
e*thirteen e*spec 30mm, 29" front / e*thirteen e*spec 35mm, 27.5" rear |
|
HUBS |
INTENSE E-MTN BOOST / 110x15mm front / 148x12mm Microspline Rear |
|
TIRES |
Pirelli Scorpion E-MTB 29" x 2.60" front / 27.5" x 2.80" rear |
|
SHIFTER |
TRP SL-M9050-12R EVO 12-speed |
|
DERAILLEUR |
TRP RD-M9050-L EVO 12-speed |
|
CRANK |
e*thirteen e*Spec Plus, 34 tooth chainring, 165mm length |
|
CASSETTE |
Shimano Deore CS-M6100 12-speed, 10-51T |
|
CHAIN |
KMC E12 Turbo 12-speed |
|
CHAIN GUIDE |
e*thirteen e*spec Plus |
|
BRAKESET |
TRP DH-R EVO, HD-M846 / 203mm rotors |
|
SEATPOST |
INTENSE Recon Dropper 31.6mm / 125mm (SM) / 150mm (MD) / 170mm (LG) / 200mm (XL) |
|
SADDLE |
SDG Bel-Air V3
|
|
HANDLEBAR |
Renthal Fatbar 35 / 800 Length, 30mm Rise |
|
HEADSET |
INTENSE ZS49/ZS56
|
|
STEM |
INTENSE Recon 35 / 45mm |
|
GRIPS |
ODI Elite Flow Lock-on |
